FY-PWPM07 combines turntable stretch wrapping with a descending top plate to support suitable loads during rotation. Pneumatic and electric top-press versions use different lifting drives and must be selected against the load height, top-contact area and site utilities.
Pneumatic version shown. Explore both press configurations below.
Product Overview
Top support for suitable pallet loads
01
Support suitable stacks
Top support can help a suitable load remain stable during turntable wrapping.
02
Choose the press drive
Pneumatic and electric top-press configurations are available and shown separately.
03
Wrap through the load height
A vertically travelling film carriage wraps the load while the pallet rotates.
Configuration
Match the machine to the application
Choose the press version before confirming load limits, press travel, top-contact settings and site utilities. The pneumatic and electric galleries below show separate configurations.
Pneumatic Top Press
Air-cylinder drive for top-press movement. Confirm pressure, flow, stroke and top-contact settings for the supplied machine.
Select an image for a larger view. Pneumatic and electric top-press versions are shown in separate groups.
Pneumatic Top Press
Air-cylinder drive for top-press movement. Confirm pressure, flow, stroke and top-contact settings for the supplied machine.

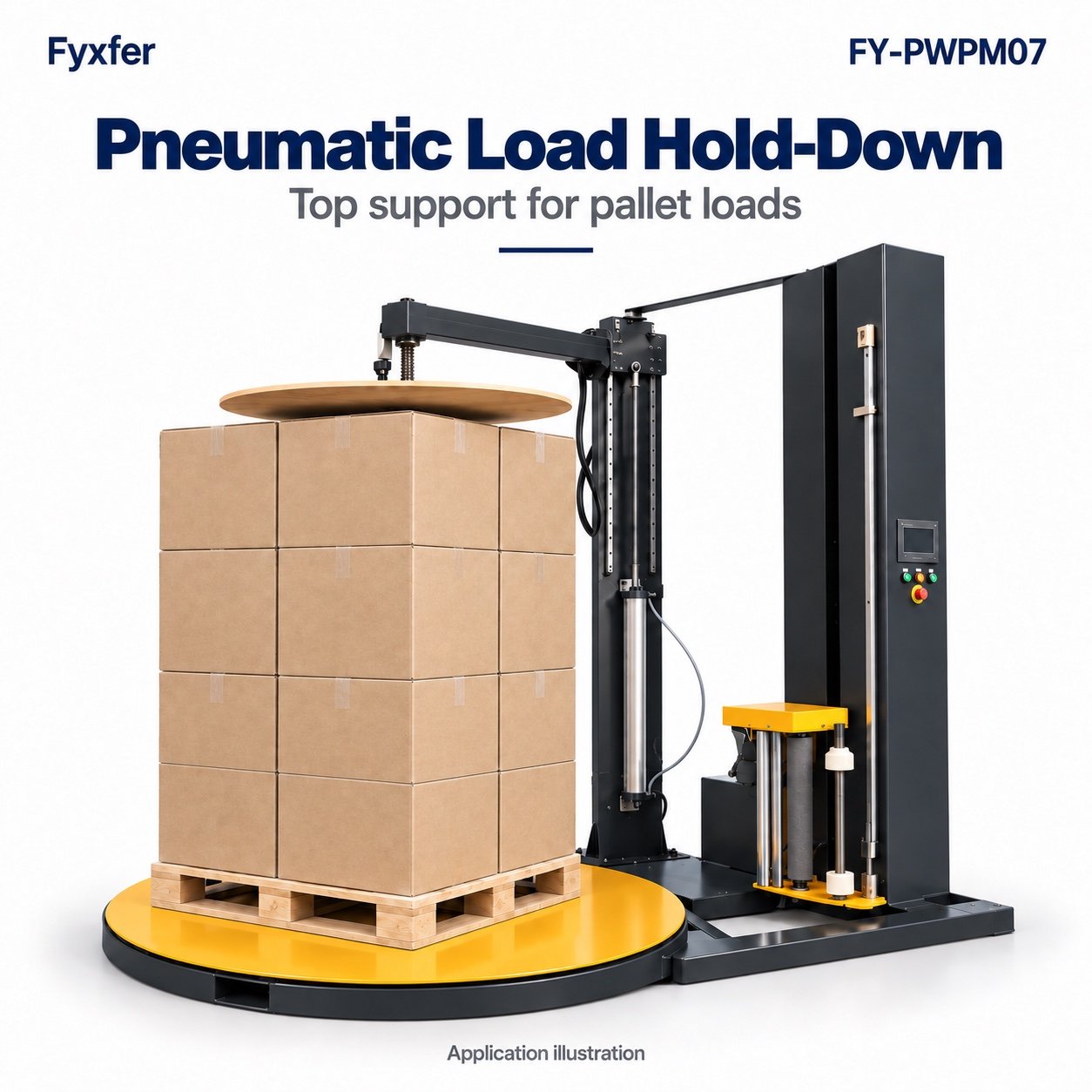

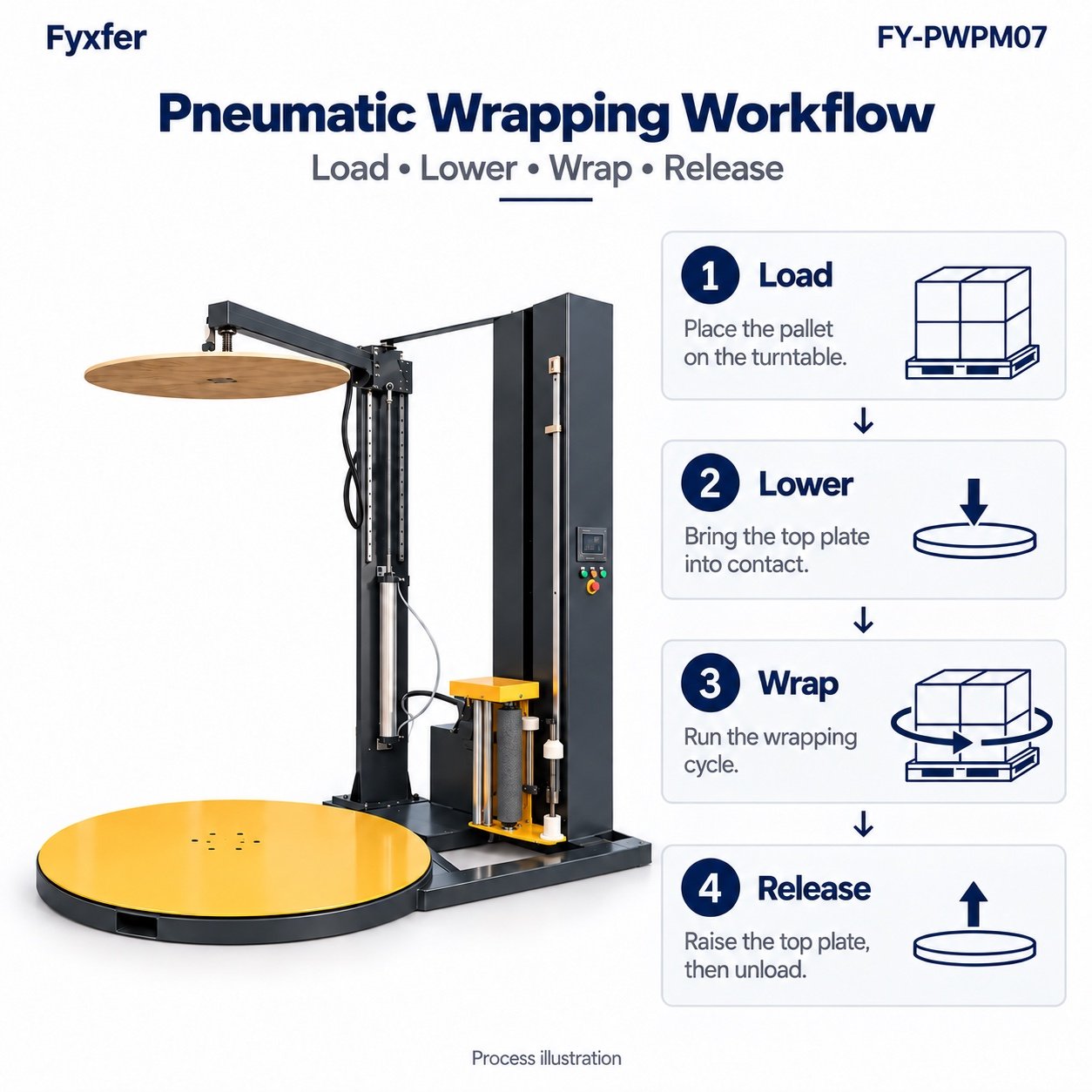

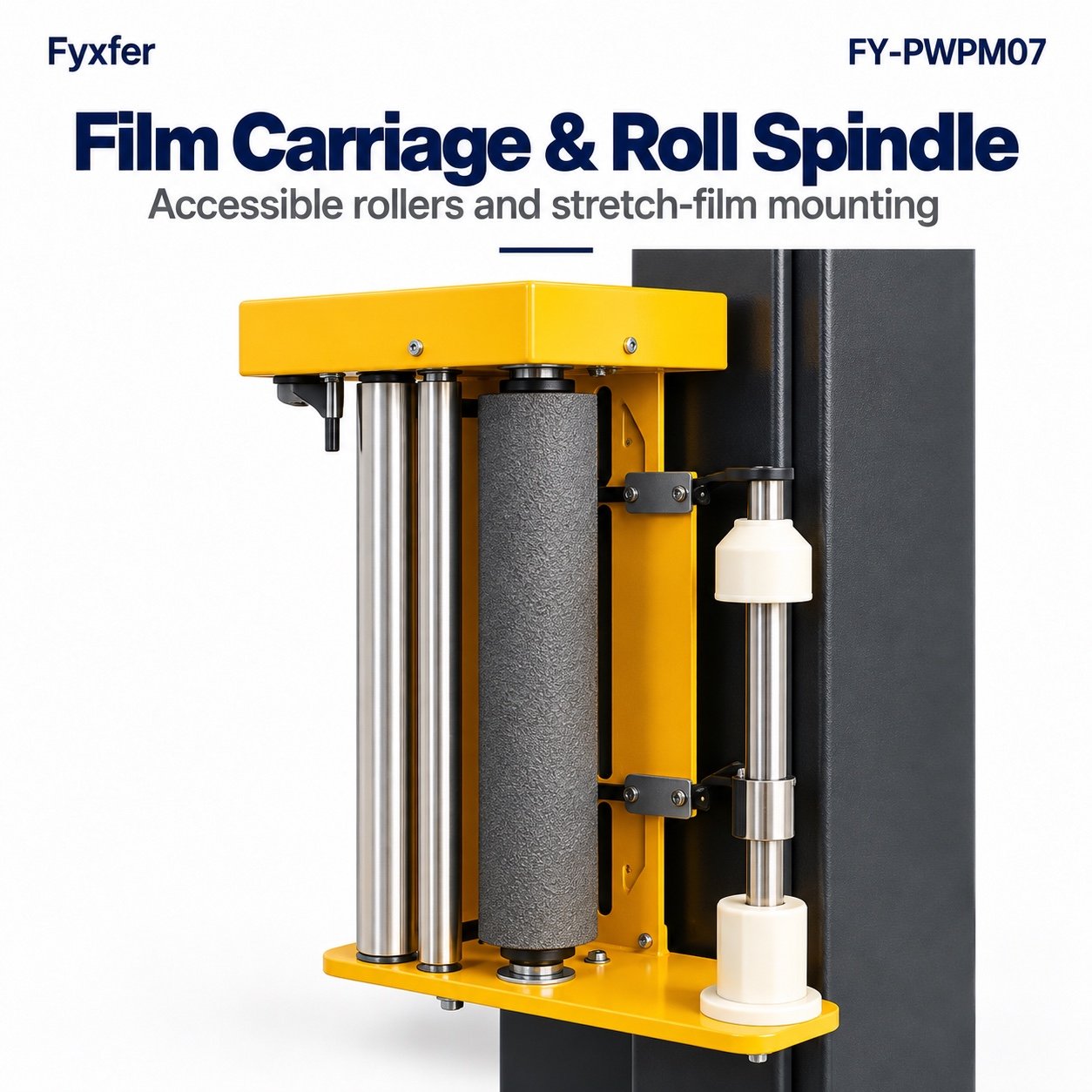

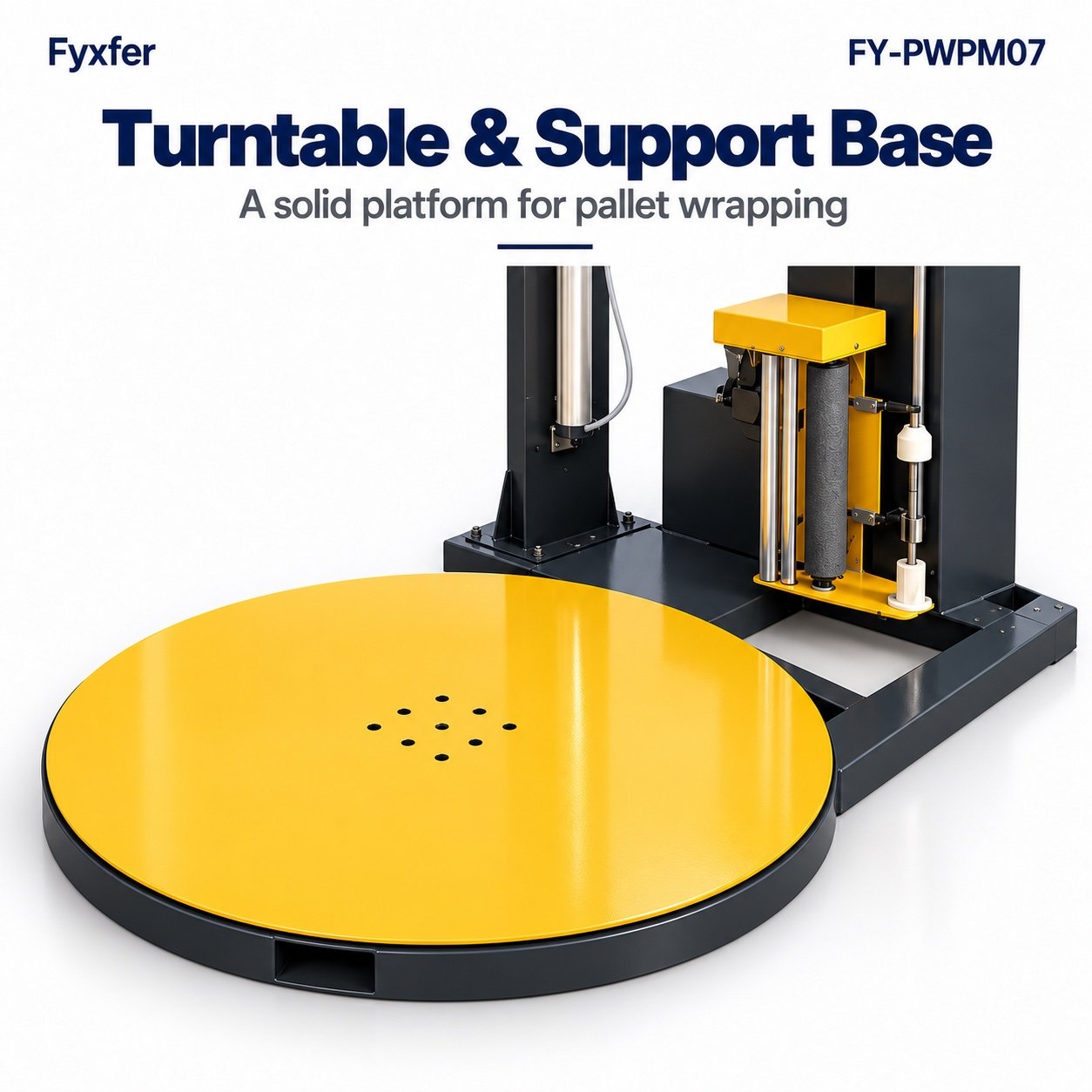

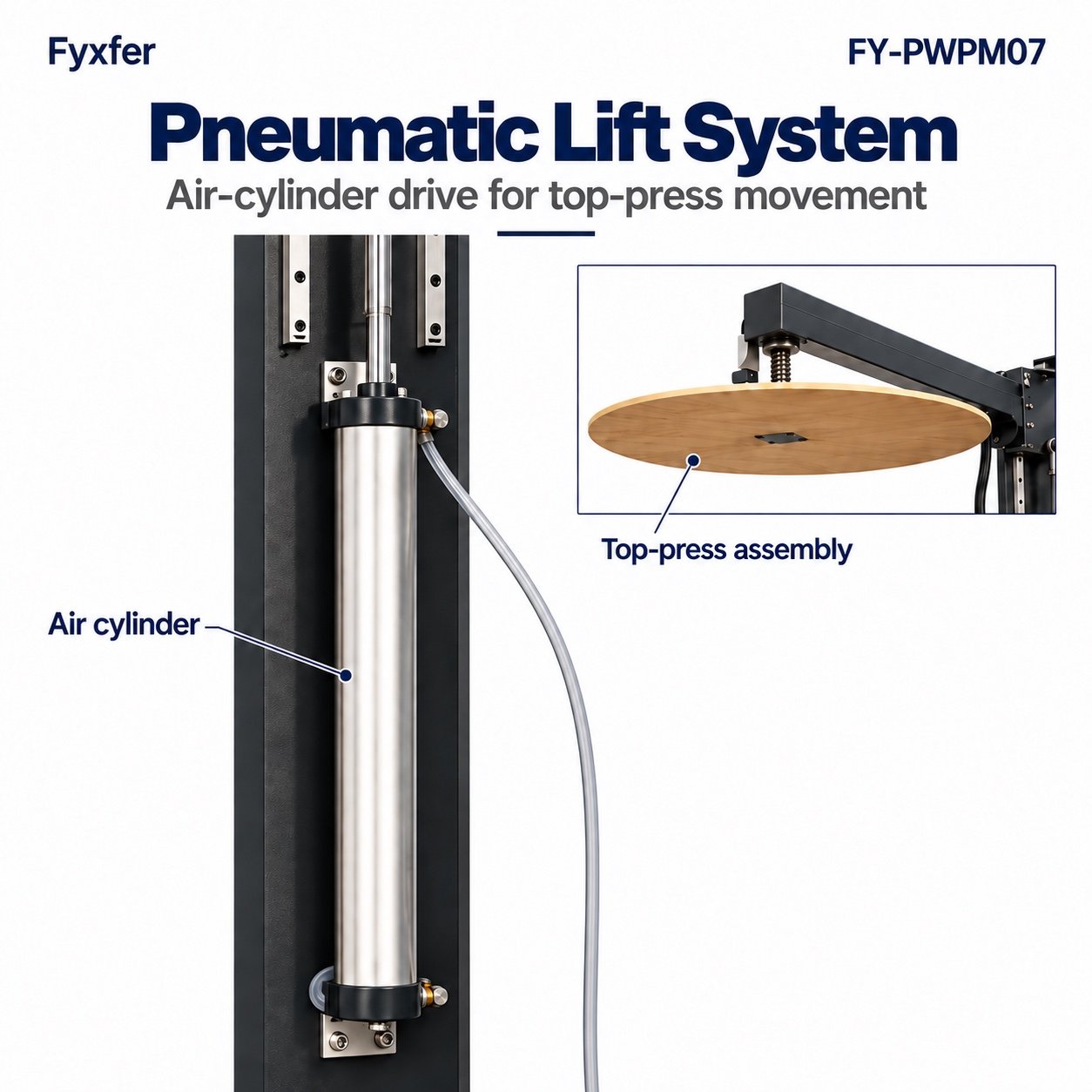

Pneumatic top-press wrapper overviewAir cylinder and press liftPneumatic top support applicationFilm carriage and roll spindleTurntable and support basePneumatic top-press wrapping workflow
Electric Top Press
Motor-driven vertical lift for the top press. Confirm travel, load heights and the utilities required by any additional options.

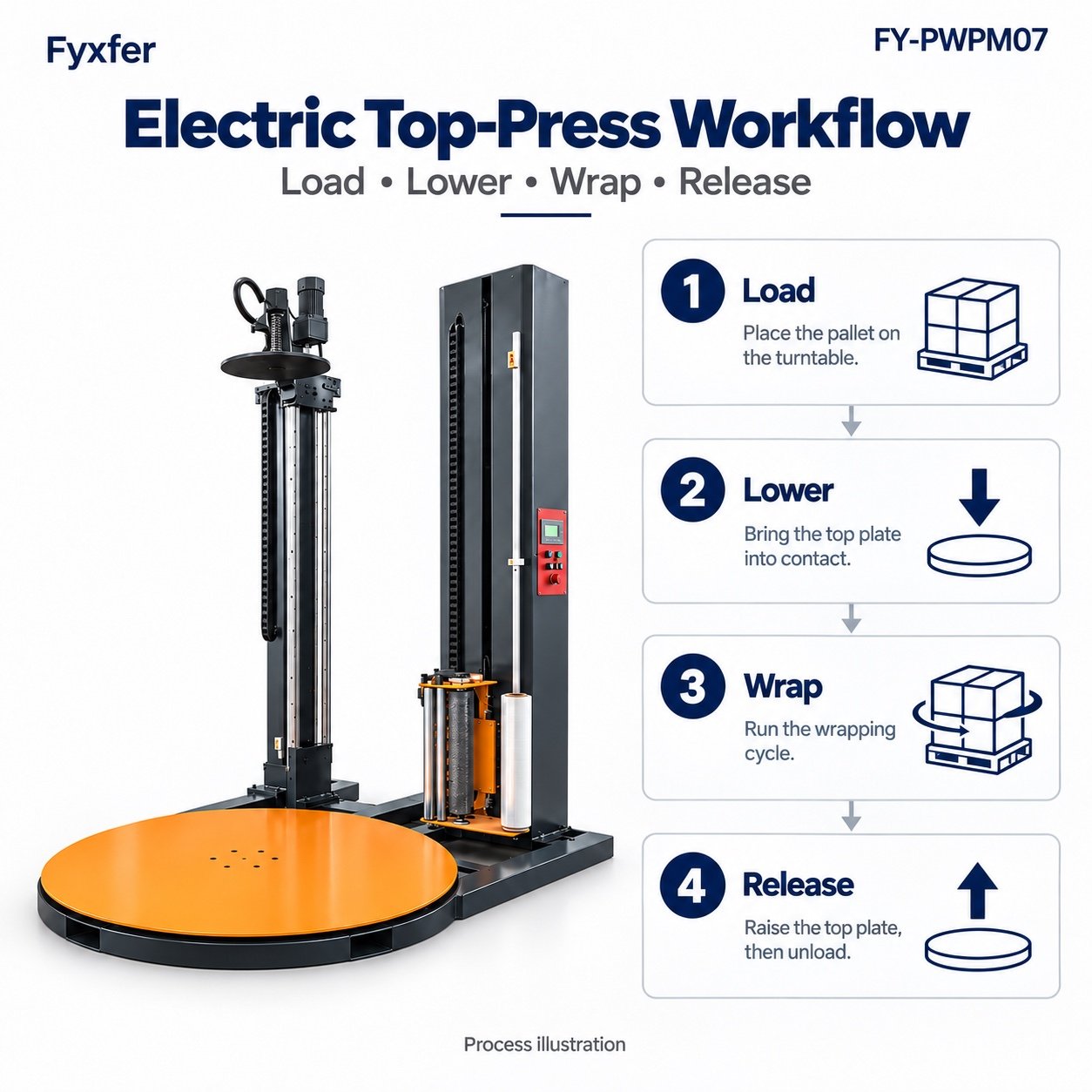

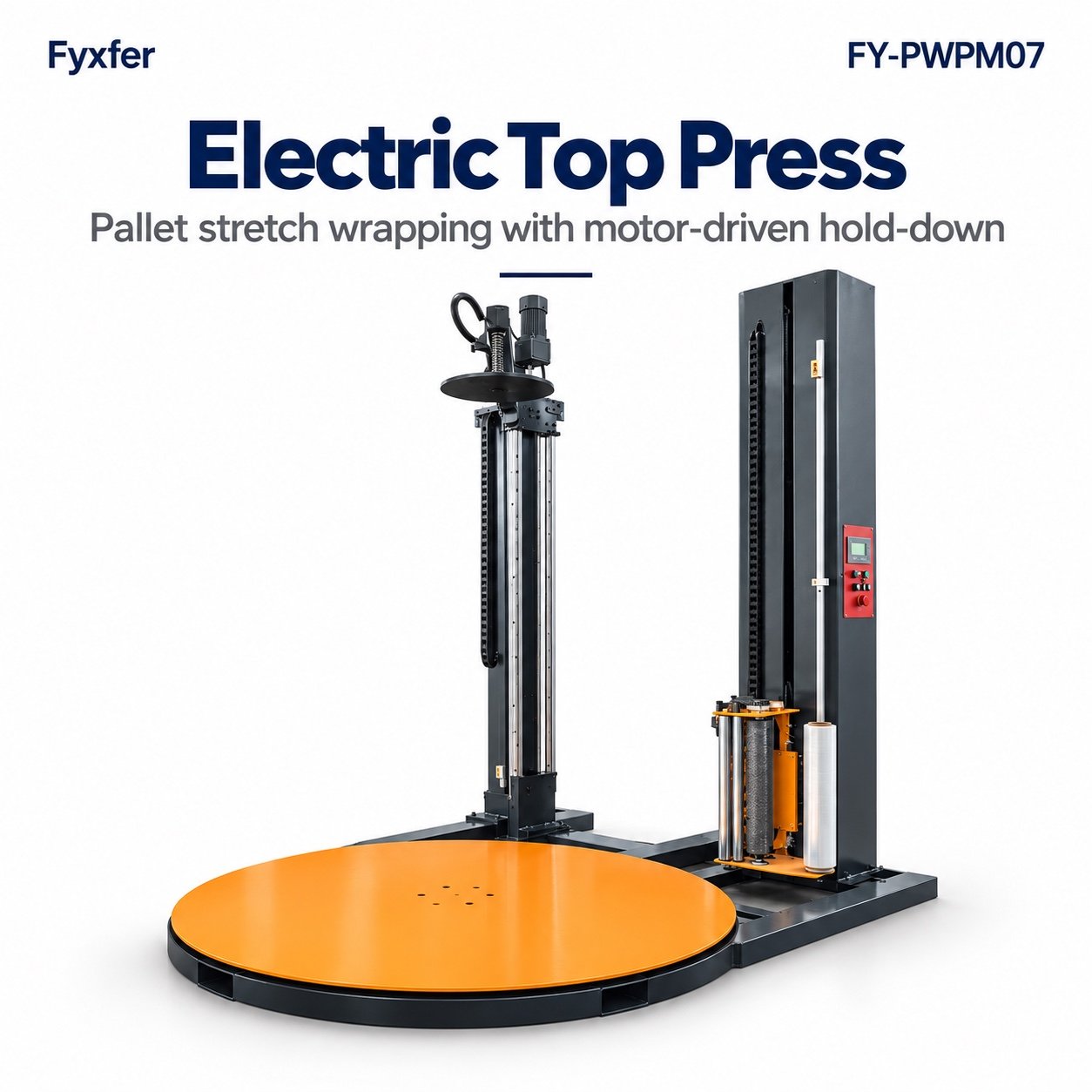

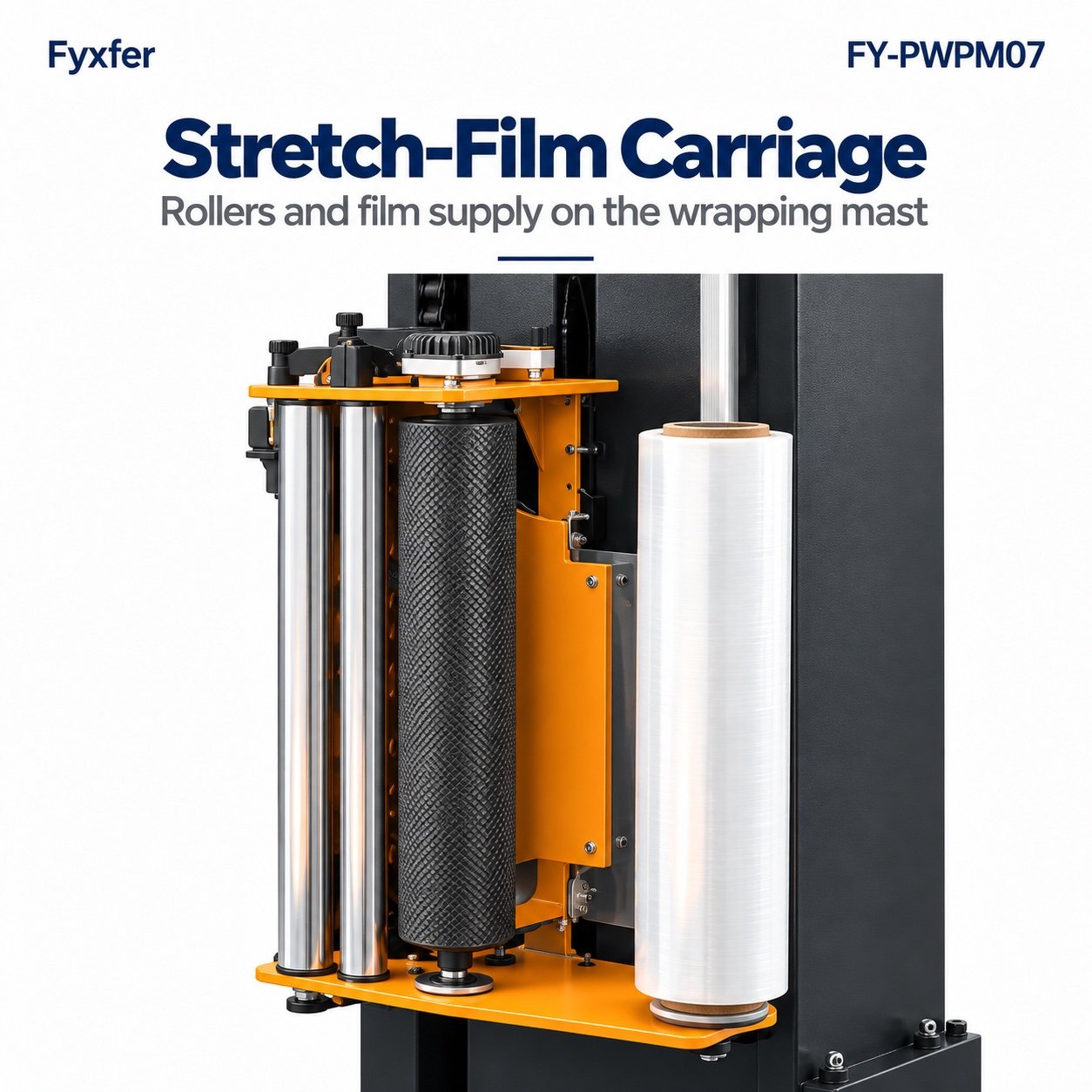

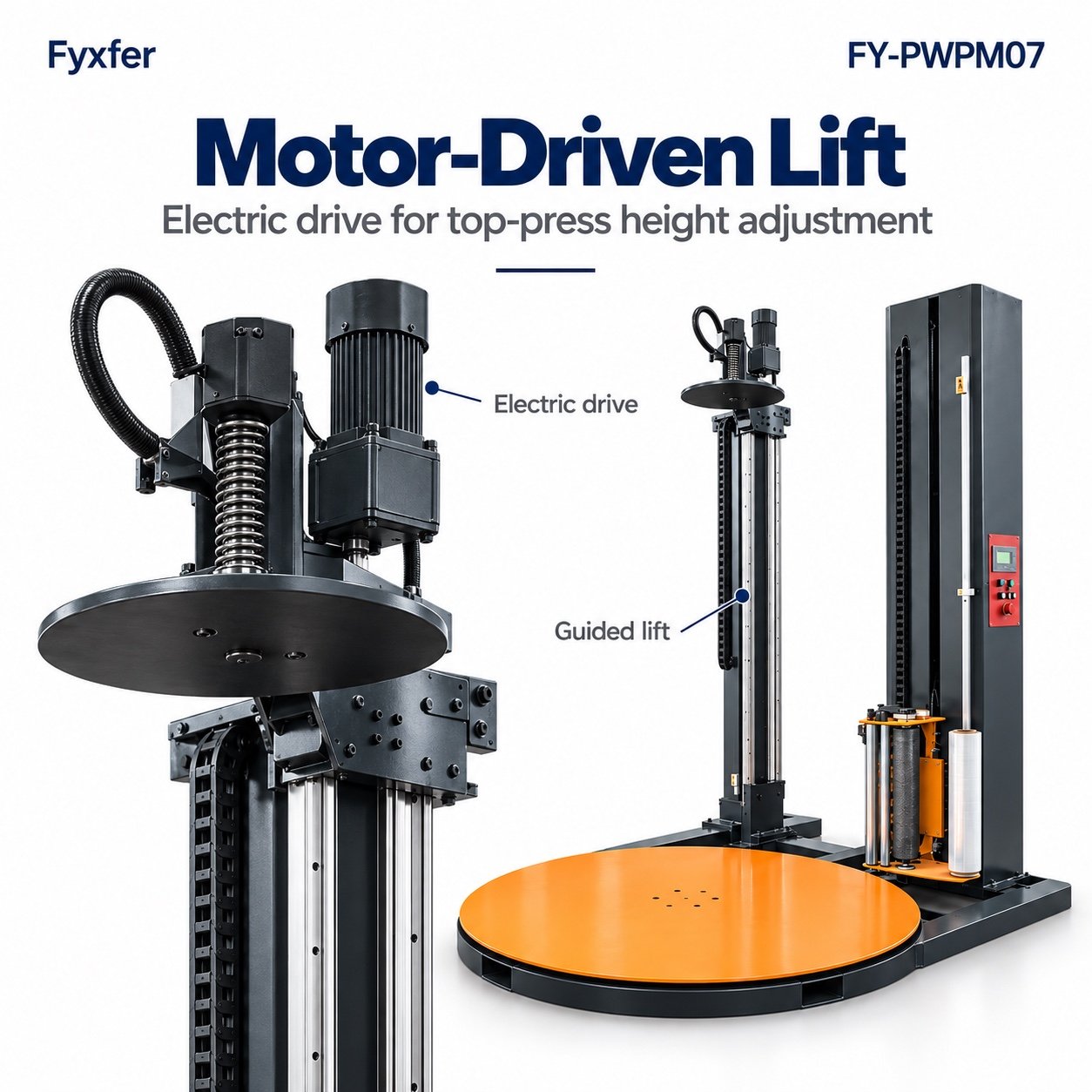

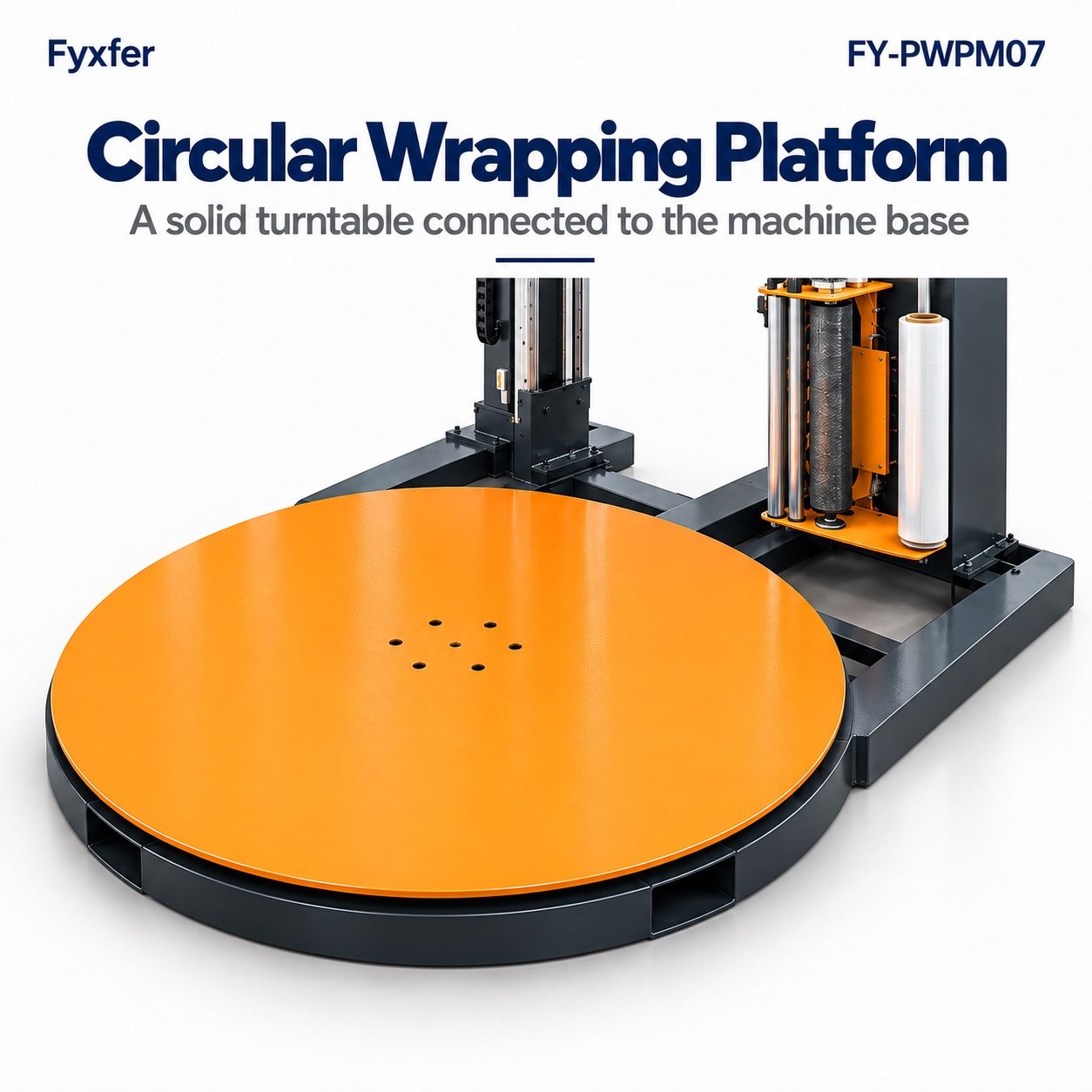

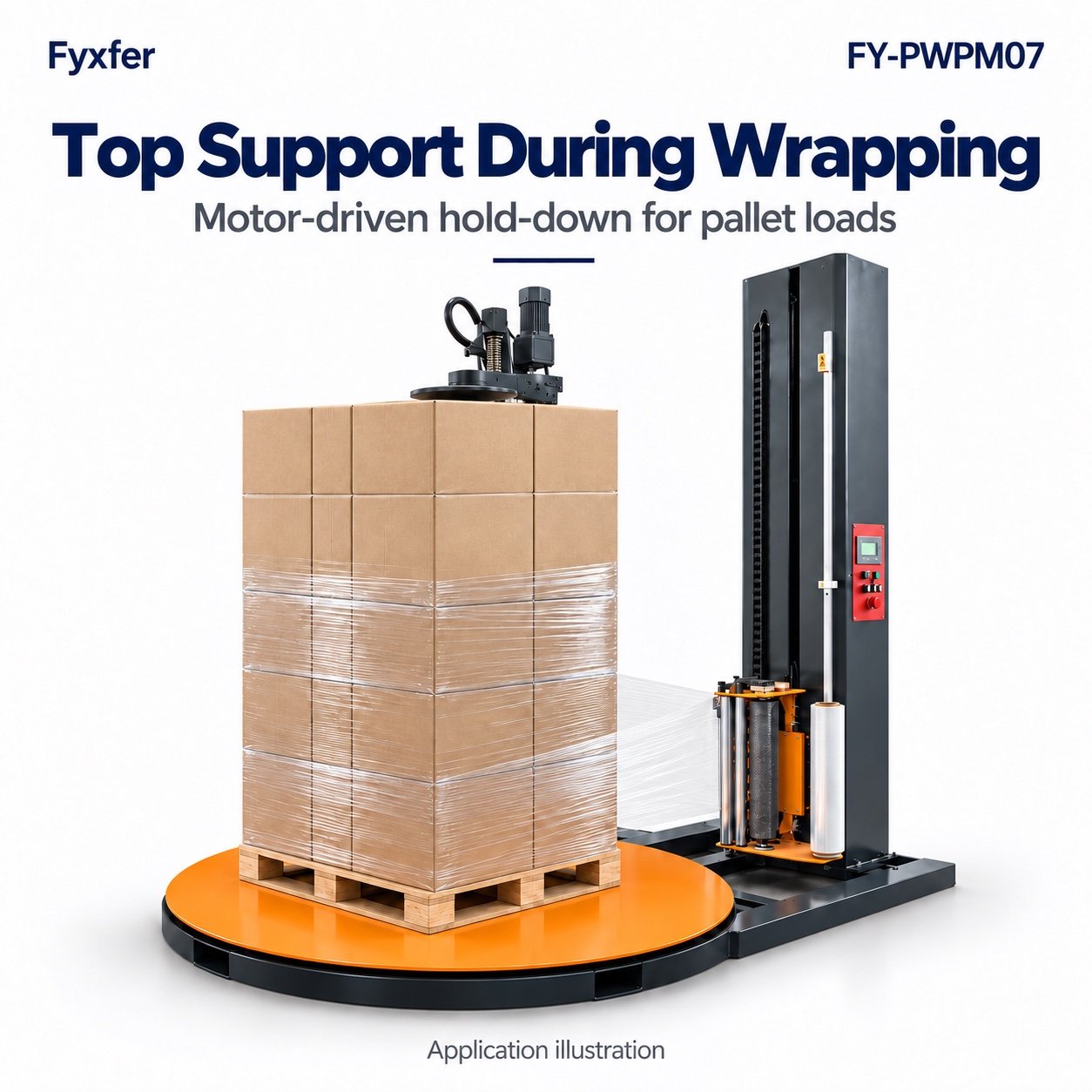

Electric top-press wrapper overviewMotor-driven press liftElectric top support applicationStretch-film carriageCircular turntable and baseElectric top-press wrapping workflow
Specifications
FY-PWPM07 configuration details
Use these confirmed product characteristics to begin selection. Order-specific limits and utilities are confirmed in the quotation.
Parameter
Value or configuration
Model
FY-PWPM07
Wrapping format
Rotating turntable with top hold-down
Top-press variants
Pneumatic air-cylinder drive or electric motor-driven lift
Film carriage
Vertical travel on the wrapping mast
Press travel and contact
Selected for the shortest/tallest load and suitable top surface
Utilities
Pneumatic version requires matched air supply; verify all utilities for the selected configuration
Rated load and turntable
Confirm for the chosen variant and pallet
Final dimensions, utilities and performance depend on the confirmed configuration and application.
How It Works
The wrapping sequence
Load the pallet
Lower the top plate to the approved contact position
Run the wrapping cycle
Raise the plate and unload after stopping
Follow the supplied operating procedure and keep the operating area clear during movement.
Selection Guide
Is FY-PWPM07 right for your application?
Pallet loads whose stack and top surface can accept the commissioned hold-down setting.
01
Provide pallet size, total weight, shortest/tallest loads and a top-surface photo.
02
Choose pneumatic or electric press and confirm the required travel and site utilities.
03
Validate stacking, contact force and finished-load containment using representative loads.
Compare turntable, mobile, top-press, rotary-arm and weighing platforms, with both FY-PWPM07 press drives. The shared guide also includes FY-PWPM04 as an additional FYXFER PACK reference.
What is the difference between the pneumatic and electric versions?
The pneumatic top press uses an air cylinder; the electric top press uses a motor-driven lift. They have different drive and utility requirements. Select the version against the load-height range and the required top-contact arrangement.
Is the top press suitable for every pallet load?
No. The stack and its top surface must be able to accept the approved contact setting. A top plate supports suitable loads during rotation; it does not replace correct stacking or load validation.
Does the electric top press mean no compressed air is needed?
It describes the press drive. Additional options may have their own utility requirements, so the complete electrical and pneumatic scope must be checked against the selected configuration.
Which capacity and dimensions should I use?
Use the values in the approved quotation and drawing for the chosen variant. Provide pallet dimensions, total weight, shortest and tallest loads, and top-surface photos for selection.
Find the right FY-PWPM07 configuration
Send your load dimensions, weight, photos and site requirements. We will review the suitable configuration and prepare a quotation.
