Continuous Coverage
Wrap film around the product perimeter and along its length with controlled overlap.
Products / Stretch Wrapping Machine Series
Horizontal Wrapping Solutions

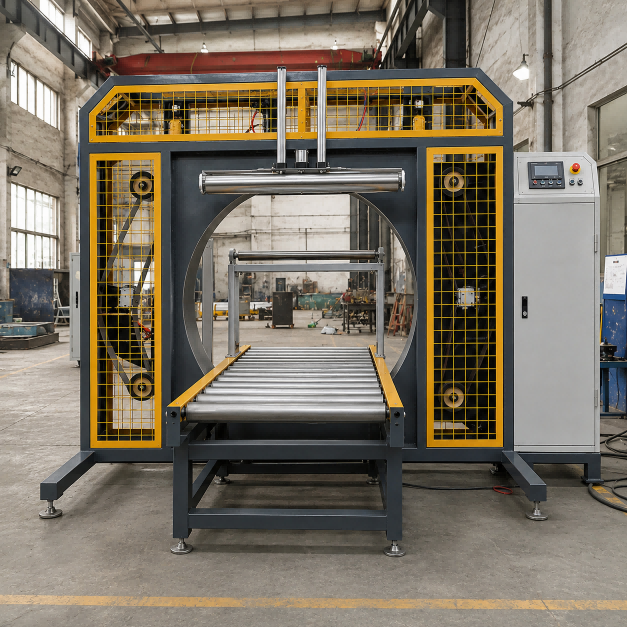

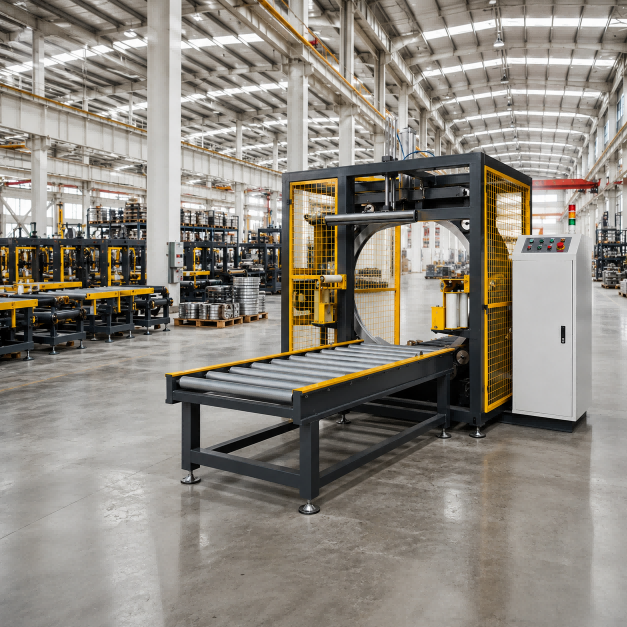

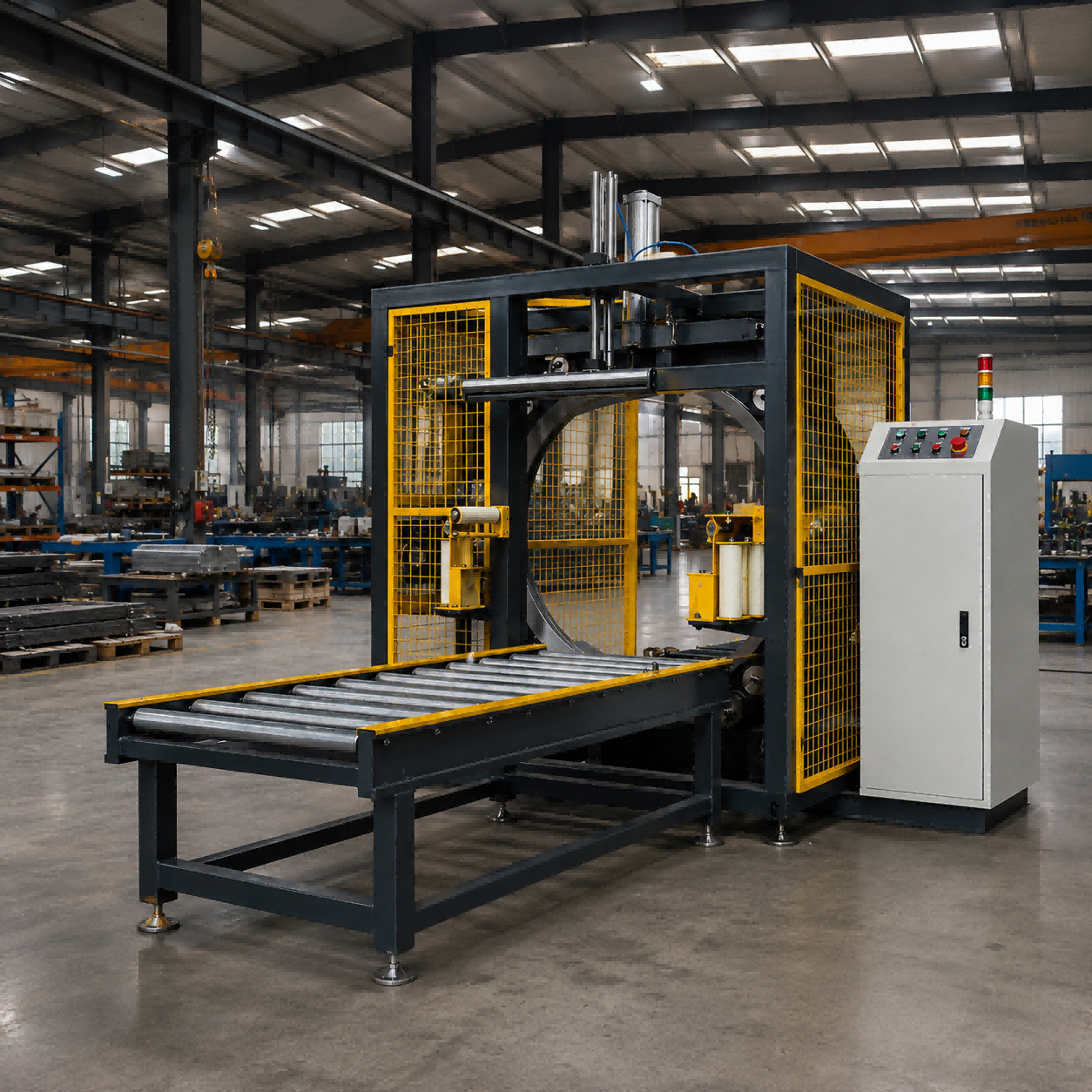

FY-PWPM03 Orbital Stretch Wrapper for Long Products
The FY-PWPM03 horizontal orbital stretch wrapper wraps profiles, pipes, panels and long bundles as they pass through a rotating film ring. Select the ring around the complete packed cross-section, then confirm product supports, feed method and film-handling options.
Application ReviewSelection starts with the workpiece
Configurable RingSized around the required product range
Conveyor ReadyManual, powered, or line-based handling
Factory SupportConfiguration, testing, and handover
Product Overview
Wrap the product without rotating the product
The orbital stretch wrapper carries the film around the workpiece through a rotating ring. This format is well suited to long or profile-shaped products that are difficult, inefficient, or unsafe to turn during wrapping.
✓
Full-perimeter film coverage
Apply stretch film around the product as it travels through the wrapping ring.
Apply stretch film around the product as it travels through the wrapping ring.
✓
Supported product handling
Keep the workpiece on rollers or conveyors throughout the wrapping process.
Keep the workpiece on rollers or conveyors throughout the wrapping process.
✓
Adjustable film overlap
Coordinate ring rotation and product movement for the required coverage.
Coordinate ring rotation and product movement for the required coverage.
✓
Project-based configuration

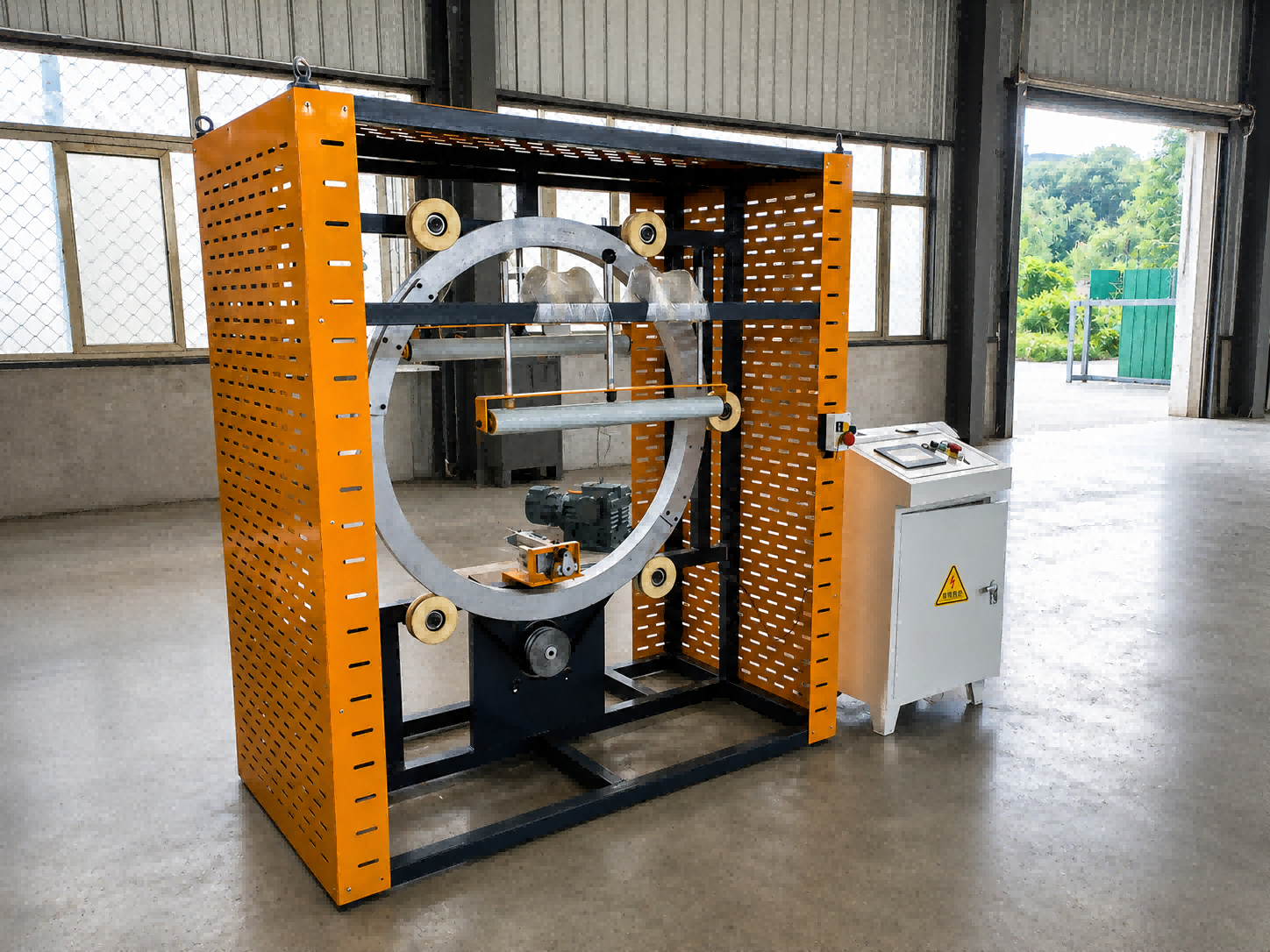

Match the ring, conveyor, guarding, controls, and options to the application.
Match the ring, conveyor, guarding, controls, and options to the application.
Key Benefits
Protection designed around long and profile-shaped products
A practical wrapping format for companies that need repeatable containment, surface protection, bundling, or transport preparation without rotating the workpiece.
Product Remains Supported
Long or awkward workpieces can stay on the conveyor instead of being turned by the operator.
Repeatable Wrap Pattern
Coordinated ring and conveyor settings help standardize the wrapping result.
Flexible Product Range
The opening, guides, and handling system can be selected for the intended size range.
Line Integration
Powered conveyors and control interfaces can support upstream and downstream workflows.
Application Options
Film tension, cutting, pressing, guarding, and handling options can be reviewed by project.
How It Works
A controlled horizontal wrapping sequence
Load the workpiece
Place or feed the product onto the support rollers or conveyor.
Set the wrap
Select the required film tension, overlap, and operating sequence.
Pass through the ring
The film carriage rotates around the product as it moves through the opening.
Complete and transfer
Finish the film cycle and move the wrapped product to the next process.
Machine Configuration
Configured around product size, support, and required coverage
Share the minimum and maximum product dimensions, weight, length, required wrap result, loading method, and target throughput. FYXFER will use those details to define the appropriate machine format.
Core Machine Functions
- Rotating film ring and adjustable wrapping sequence

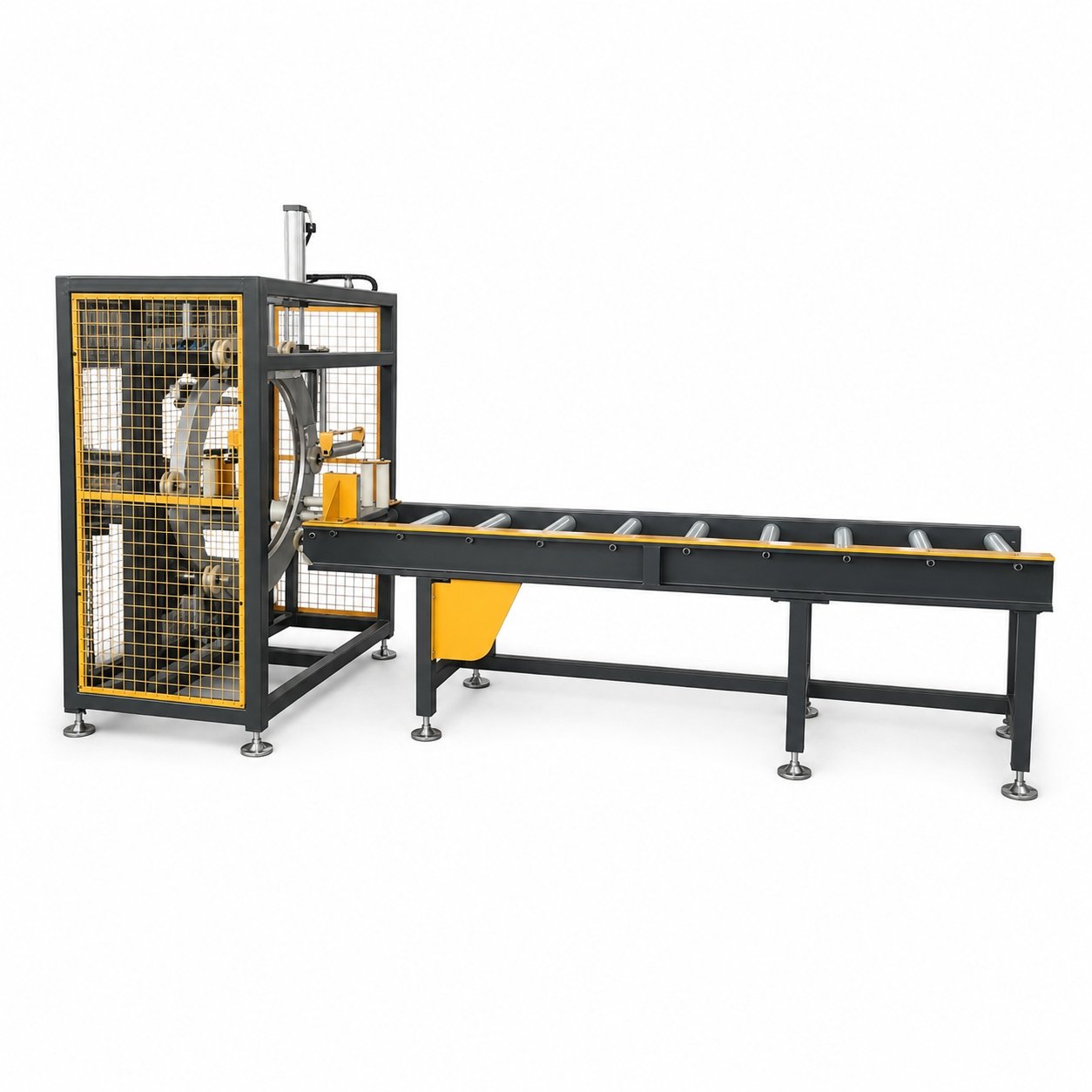

- Product support through rollers or conveyor sections
- Adjustable film tension and overlap control
- Operator controls and emergency-stop system
- Safety guarding around the wrapping movement
Available Project Options
- Ring and conveyor dimensions for the product range
- Powered infeed and outfeed conveyors
- Automatic film clamping and cutting functions
- Top or side pressing and product-guiding devices
- Controls and interfaces for production-line integration
FY-PWPM03 — reference specifications
Data for the listed reference configuration. Confirm the selected variant and operating conditions before ordering.
| Parameter | Reference value / condition |
|---|---|
| Suitable products | Long, narrow or profile-shaped products |
| Wrapping length | Determined by the conveyor and support layout |
| Ring speed | 100 rpm reference; confirm for the selected ring size |
| Conveyor speed | 5–8 m/min reference |
| Film roll outside diameter | 120–150 mm |
| Film width | 80–100 mm |
| Main machine motor | 0.75 kW reference; conveyor excluded |
| Power supply | 380 V reference; other standards on request |
Ring selection reference
| Ring inside diameter / mm | Max. product cross-section diagonal / mm |
|---|---|
| 500 | 300 |
| 680 | 450 |
| 800 | 600 |
| 1200 | 1000 |
| 1500 | 1200 |
| 1800 | 1500 |
| 2000 | 1700 |
Configuration options
Roller or belt conveyor; top pressure device; automatic film cut and clamp; guarding; line-control interface. Conveyor load, height and support are application-specific.
Information needed for selection
Product width, height, diagonal and protrusions; length, weight and support points; required line speed; conveyor height and load; destination electrical supply.
Final specifications and supply scope follow the approved quotation and drawings. Images may show optional equipment.
Product Selection
Orbital wrapping or pallet wrapping?
The correct machine format depends on what should move during the wrap cycle.
The product moves through a wrapping ring
Best suited to long, bundled, profile-shaped, panel-like, or awkward workpieces that should remain supported while the film rotates around them.
The complete pallet rotates on a platform
Best suited to palletized loads that can rotate safely on a turntable while the film carriage moves vertically around the load.
Manufacturing & Quality
Project configuration reviewed before manufacturing
FYXFER coordinates application review, machine configuration, assembly, applicable checks, export preparation, and after-sales handover through the factory team.
Applications
Typical products for horizontal orbital wrapping
Aluminum & Metal Profiles
Apply protective film coverage around long extrusions, channels, and bundled profiles.
Pipes & Tubes
Wrap individual or bundled pipe products while they remain supported along the conveyor.
Timber & Boards
Contain and protect long wood products, boards, panels, and bundled components.
Doors & Furniture Parts
Provide film coverage for panel-like products and assembled or semi-finished components.
Rolled & Flexible Goods
Review orbital wrapping for suitable rolled, bundled, or elongated flexible products.
Industrial Components
Prepare long or irregular manufactured parts for handling, storage, or transport.
Frequently Asked Questions
Planning your orbital wrapping project
What information is needed for machine selection?
Please share the minimum and maximum width and height, product length, weight, rigidity, surface condition, required film coverage, loading method, target throughput, and destination power supply. Photos or a process video are also useful.
How do I choose the orbital wrapper ring size?
Measure the maximum packed width and height, including spacers, corner protection and protrusions. For a rectangular bundle, calculate the diagonal from those dimensions and compare it with the maximum product diagonal in the ring-selection table. Nominal ring diameter is larger than the usable product range; FYXFER must confirm clearance, guides and support for the complete product.
Can the wrapper handle different product sizes?
Yes, within the confirmed machine range. Product guides, support rollers, conveyor dimensions, and operating settings should be reviewed for the minimum and maximum products.
Can this orbital stretch wrapper run in an existing production line?
Inline operation can be evaluated with the proposed conveyors and controls. Send the feed direction, conveyor height, available space, shortest and longest product lengths, weight and target output. Confirm the product supports, start/stop signals, guarding and any automatic film clamping or cutting in the agreed supply scope.
Can film cutting and clamping be automated?
Automatic film handling can be reviewed as a project option. The appropriate arrangement depends on the product, film, operating sequence, and required automation level.
What support is available for overseas projects?
Project support can include operating documentation, remote technical assistance, troubleshooting coordination, and spare-parts guidance. The applicable scope should be confirmed for each order.
Selection Guide
Is FY-PWPM03 right for your application?
Start here for long products and bundles that remain supported while passing through a wrapping ring.
Check the load or material
Measure the complete packed cross-section, including protection and protrusions; compare its diagonal with the usable product range.
Define your process
Confirm the shortest and longest products, weight, rigidity and support points.
Confirm the configuration
Specify feed speed, film coverage, infeed and outfeed, guarding and line interfaces.
Use this checklist for an initial review. Final machine limits, options and acceptance criteria are confirmed in the project quotation.
Horizontal Orbital Wrapping
Use the existing ring-to-product selection table, supported-feed checks and configuration references for FY-PWPM03.
FY-PWPM03
PDF · English · 271.6 KB
FY-PWPM03_Technical_Datasheet_EN.pdf
Tell us what needs to pass through the ring
Share the product cross-section, length, weight, surface condition, wrapping goal, handling method, and required output. Our team will help define a suitable orbital wrapper configuration.
